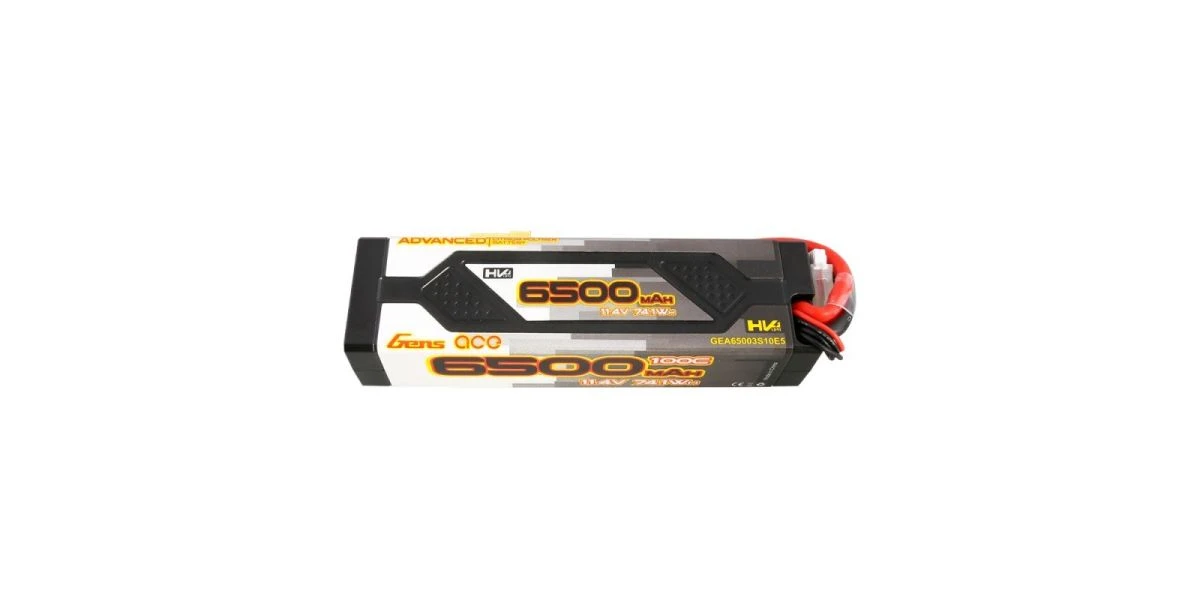

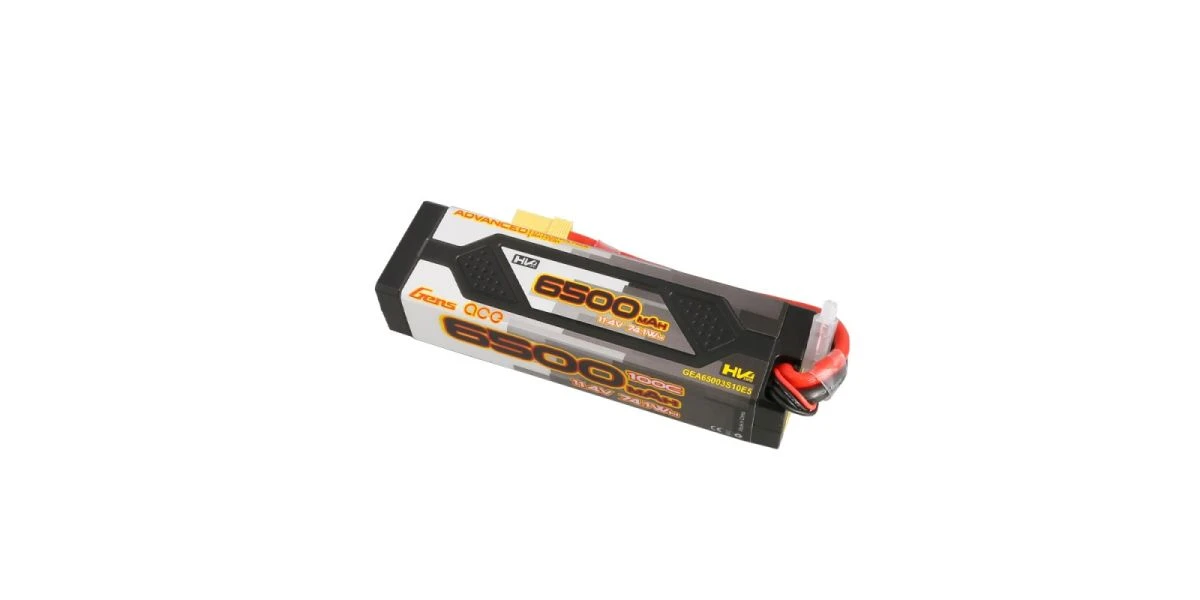

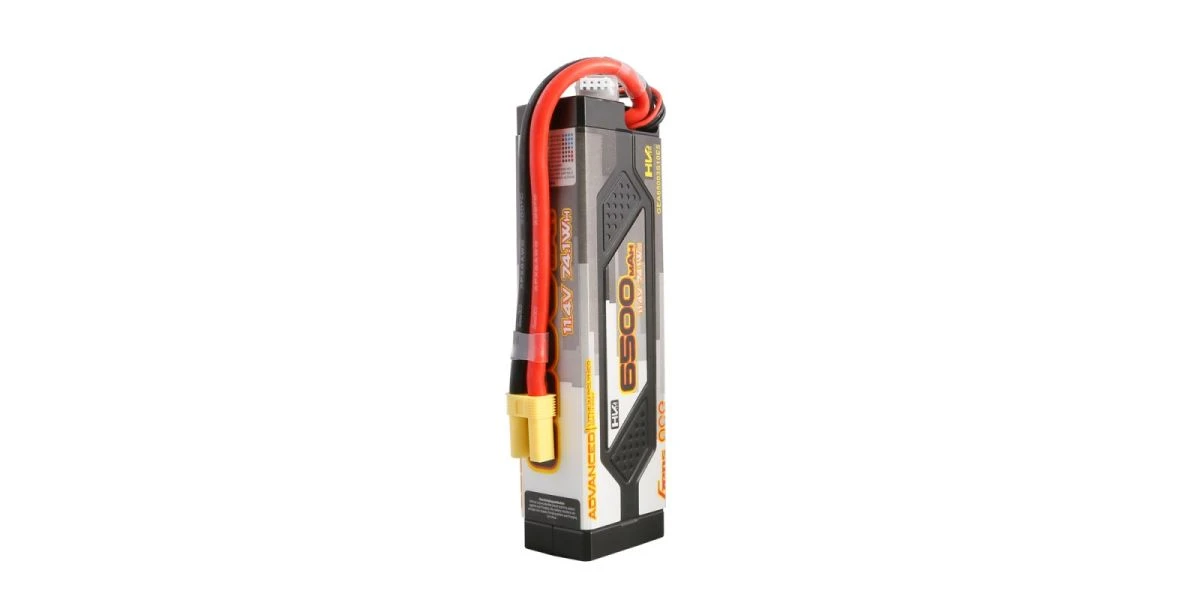

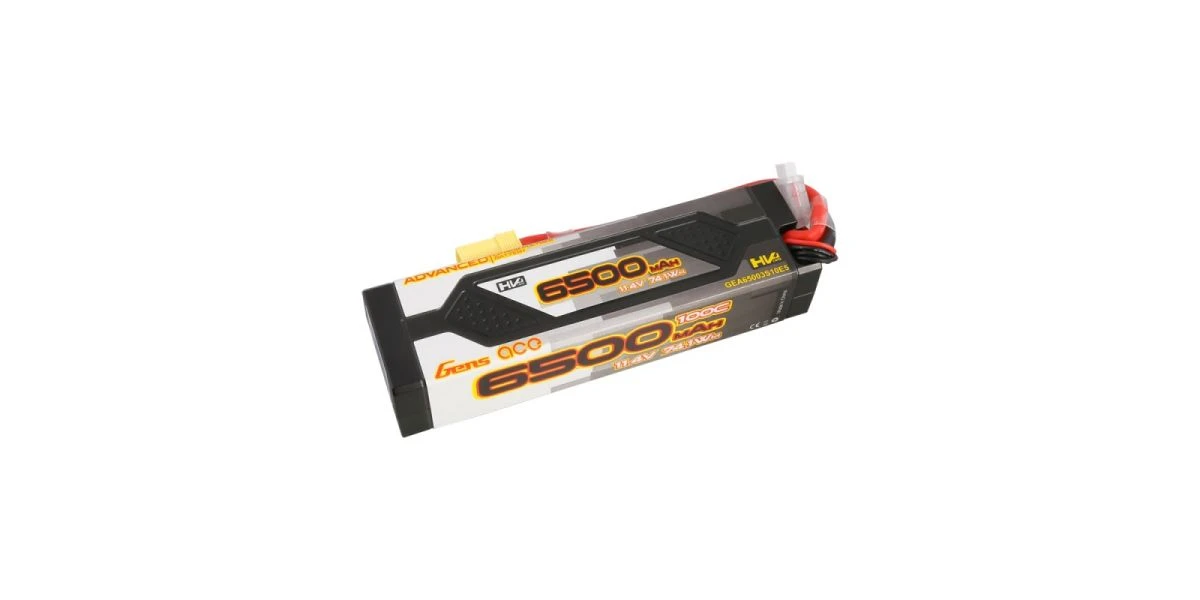

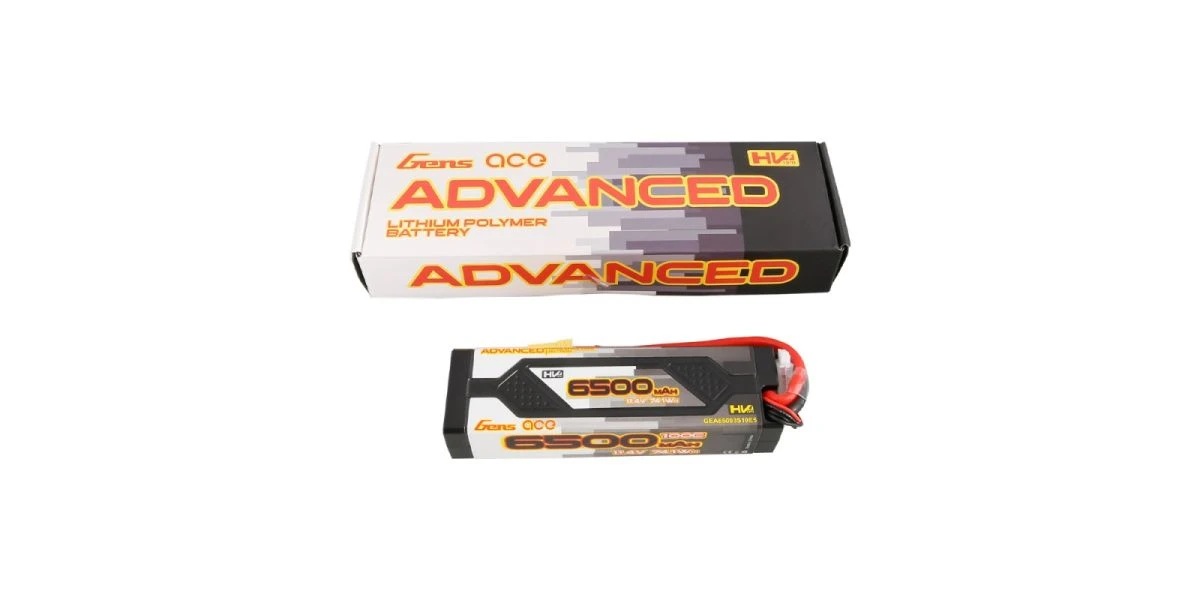

Kyosho Gens Ace Advanced LiPo 3S 11.4V-6500-100C(EC5) 165x47x34mm 480g
Original price was: $111.71.$78.20Current price is: $78.20.
- Unbeatable Quality Guaranteed
- Safe Transactions, Happy Customers
- Quality that lasts, prices that don't.
- Shop quality, shop with us.
Advanced 4.35V HV Series, New generation of RC Smart batteries. The Advanced series design concept is based on being a more convenient, user friendly and safety oriented series of batteries.
We produce the high quality LiHv cells, hard-case, internal circuitry, power indicator lights and other smart features. The first concept of 4.35V high-voltage allows higher energy density and longer battery life. Each cell with 3.8V nominal voltage.
The first concept of 4.35V high-voltage allows higher energy density and longer battery life. Each cell with 3.8V nominal voltage.
The following is taking 10000mah 4s for example.
A press of the button will show the remaining charge level of the pack from 4 LED power indicator buttons. Each represents 25% of the pack total charge level.
When there is a large cell voltage difference ( ＞ 300mV) the LED button will flash red and blue.
If the pack voltage is too low the LED button will have a solid red light .
If after 5 days the internal circuit detects a charge level above 3.95v per cell the Advanced battery circuit will begin the self storage mode and stop when storage level 3.92V is achieved.
While detect an overcharge condition it will cut the connection to the balance lead causing the charger to stop. LED button light will flash red and warn that there is an overcharge condition until the battery voltage drops back down to normal.
